Materieel '24 (BD9107 + C8553 + C9002) als trein 28364 van Utrecht Maliebaan naar Hilversum, is hier zojuist station Hilversum Sportpark gepasseerd.
"Materieel '24" (BD9107 + C8553 + C9002) as train 28364 from Utrecht Maliebaan to Hilversum, just has passed Hilversum Sportpark station.
Photo by Peter van der Spek |
|

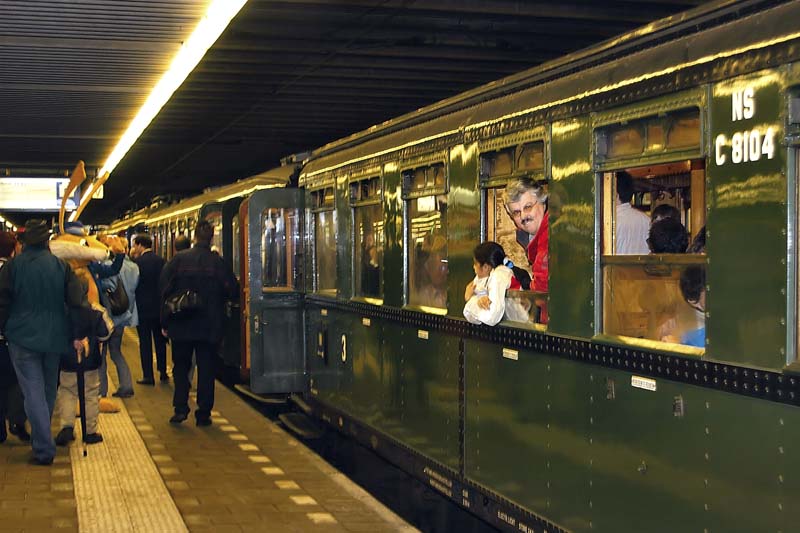

Blokkendoos NS C 8104, Den Haag CS 25 May 2006
Photo: Leen Dortwegt |
|

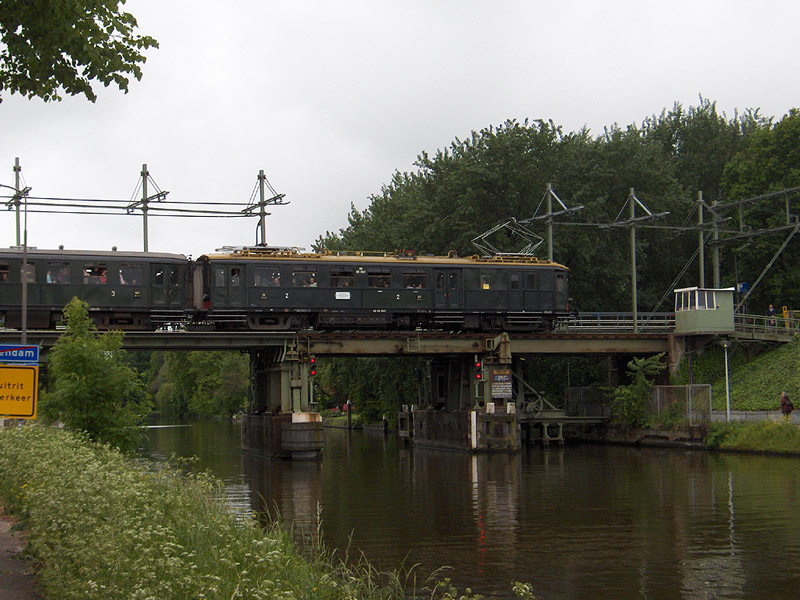

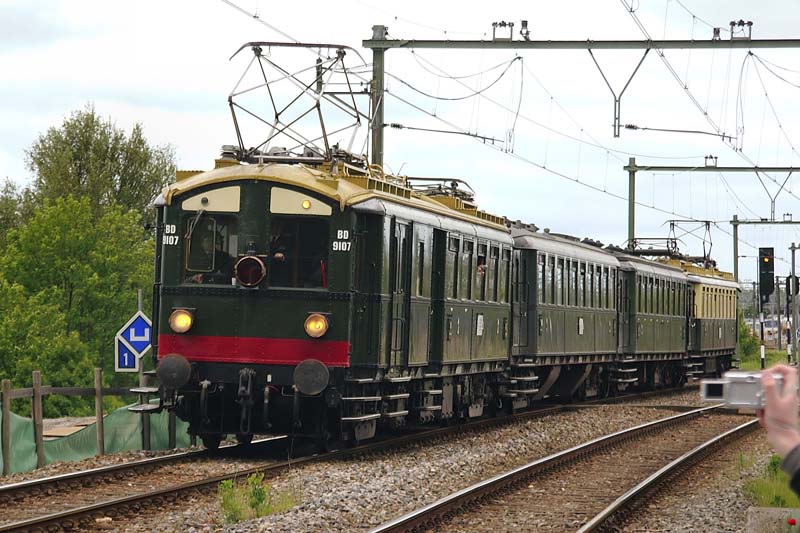

DB 9107, Leidschendam Voorburg 25 May 2006
Photo: Leen Dortwegt |
|
The Railway Museum (Dutch: Het Spoorwegmuseum) in Utrecht is the Dutch National Railway Museum.
It was established in 1927 and since 1954 has been housed in the former Maliebaan station. The museum currently owns a large and varied collection of rolling stock.

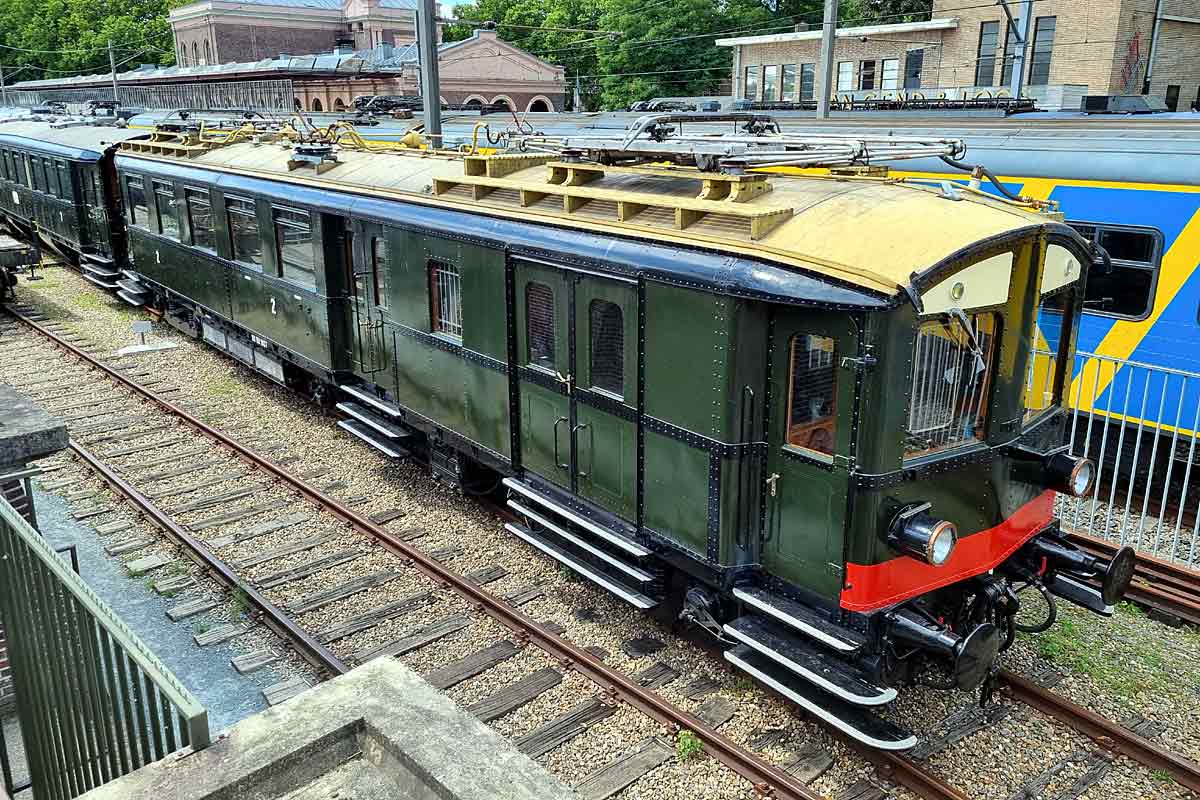

Electric Motor Unit NS BD 9107 built i n1927 by Fa J.J. Beijnes, Koninklijke Fabriek van Rijtuigen en Spoorwagens, Haarlem as part of the Mat '24 / mBD / type 1 / serie BD 9101 - 9130 Class preserved at the Het Spoorwegmuseum / Railway Museum in Utecht Maliebaan former Station. July 15th, 2022.
In 1924 a prototype train of the main electric line material appeared on the test section Leiden - The Hague HS, in anticipation of the electrification in 1927 of the route Amsterdam CS - Haarlem - The Hague HS - Rotterdam DP and of the branch line Haarlem - IJmuiden. Two-car trains ran on the latter route, while longer trains ran with a maximum of 12 carriages in the Amsterdam - Rotterdam express train service.
In 1931, the Amsterdam CS - Alkmaar line was also electrified.
A total of 259 coaches were purchased for the three lines mentioned, about half of which were motor vehicles. This equipment had a square, robust appearance. In the thirties of the last century this equipment was nicknamed 'Bokkendozen', not only because of this appearance, but also because of the possibility to easily adapt the trains to the transport demand, for example only 3rd class for workmen's trains, only 1st and 2nd class for boat trains to/from Hoek van Holland, no 1st class in local trains. The new streamlined trains from 1934 did not have these possibilities: they only had 2nd and 3rd class in a fixed ratio of about 1:4. In contrast to the modern trains with automatic couplings, the block boxes had 'normal' draw gear and side buffers, hence the official nickname 'Buffer equipment'.
In 1944/45 the occupying forces transported 158 electric carriages to Germany, of which 23 did not return. As a result of the war, a total of 56 boxcars were removed.
From 1956 new electric trains of the 1954 type were put into service, the so-called Hondekoppen. This meant that Mat '24 became a bit redundant. But it was still considered suitable to be converted into a towed carriage (140 pcs), motor mail coach (25 pcs) or motor convoy wagon (5 pcs). The rest was equipped as catenary assembly car, work car, classroom or exhibition car (33 pcs).
The last electric Block Box ran on May 31, 1959. The drawn carriages were still in service until 1973, including in the then military trains and as rush hour reinforcements.
After 1970, the type 1924 drawn carriages were also taken out of service. A number of them were acquired by museum train organisations, viz.: Stoomtrein Goes - Borsele (8 pcs), Veluwsche Stoomtrein-Maatschappij (7 pcs) and Hoogovens Excursietrein (now Corus Stoom IJmuiden - Tata Steel , 5 st) to serve behind their steam locomotives. Finally, 4 carriages were restored and refurbished for electric traction, viz.: the Spoorwegmuseum (3 pcs) and the Hobbyclub of the NedTrain overhaul company in Haarlem (1 pcs).
Motor carriage BD 9107 (mBD) was built in 1927 by the fa J.J. Beijnes in Haarlem with an electrical installation of Metropolitan Vickers, 40 seats 2nd class and a luggage department. It was destined for the main line Amsterdam - Rotterdam, and then carried the number BD 9007.
At the end of 1945 the carriage returned from Germany damaged. In 1947 it was repaired and put back into service as CD 9107 (mCD, so 3rd class).
In 1957/58 it was converted into the BD 5902 (BDz) trailer, 2nd class new style and still with 40 seats. The electrical installation, including the pantographs, was removed, the cabin was replaced by a bellows balcony and the baggage area was given a side corridor.
Already 4 years later the carriage was redundant and it was converted into an instruction carriage for the Road & Works Department with the number 159016.
A permanent instruction room was completed in 1987, after which the carriage was given a museum destination.
Restoration and reconstruction into electric motor vehicle BD 9107 took place in the Wagenwerkplaats in Amersfoort in the years 1987 - 1989, almost entirely in accordance with the implementation of the 1930s. However, it now received an electrical installation from Heemaf.
In May and June of 2010, the BD 9107 was fitted with a simplified version of automatic train influence (ATBe) at Strukton in Zutphen, and was tested. The deployment certificate was not received until September, after which a first ride for volunteers from the Railway Museum took place on 9 October.
In November 2011, the BD 9107 and bar carriage C 8553 went to the workshop of NedTrain in Haarlem for a running gear overhaul. The actual overhaul of the bogies took place at Reuschling in Hattingen (Germany), where, among other things, all suspension springs were replaced by new ones. In December 2012, the complete train was re-approved for service after a successful test run on the public rail network.
The block train is temporarily out of service due to major maintenance.
abbreviations:
B = 2nd class
C = 3rd class
D = baggage car, or carriage with a baggage compartment
m = motor vehicle
z = without closet
Photo by Guido Allieri (guido@allieri.com) |
|

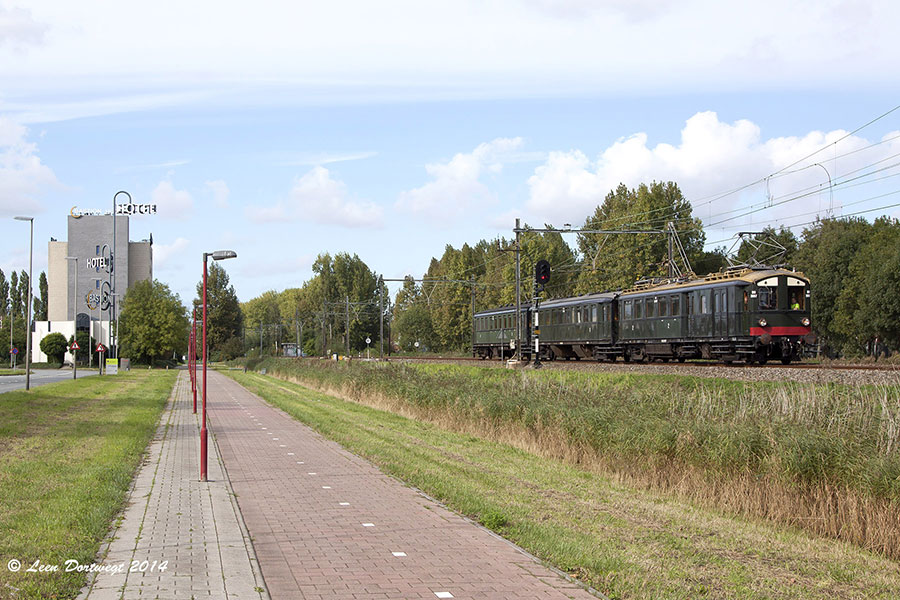

The Blokkendoos BD 9107, C 8553 and C 8104 under way from Leidschendam to Utrecht, Zoetermeer October 5, 2014.
Photo by Leen Dortwegt leendortwegt(AT)Gmail.com |
|
BD 9107, NS 20 and 273, Because 175 years in the Netherlands Railway open day at Leidschendam, October 4, 2014.
Photo by Leen Dortwegt leendortwegt(AT)Gmail.com |
|
NSM Blokkendoos BD 9107 near Leidschendam-Voorburg. 25.05.2006 Photo by Thomas van Berkel |
|

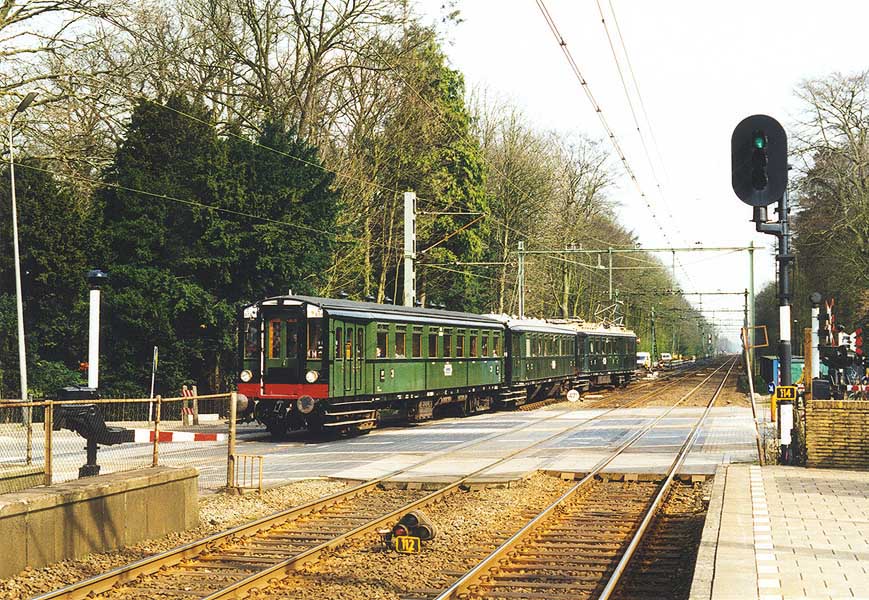

NSM Mat'24 The NSM 3-car Mat'24 arriving at Driebergen-Zeist on the 25th of March 1999.
Photo and scan by: Peter Schokkenbroek
|
|

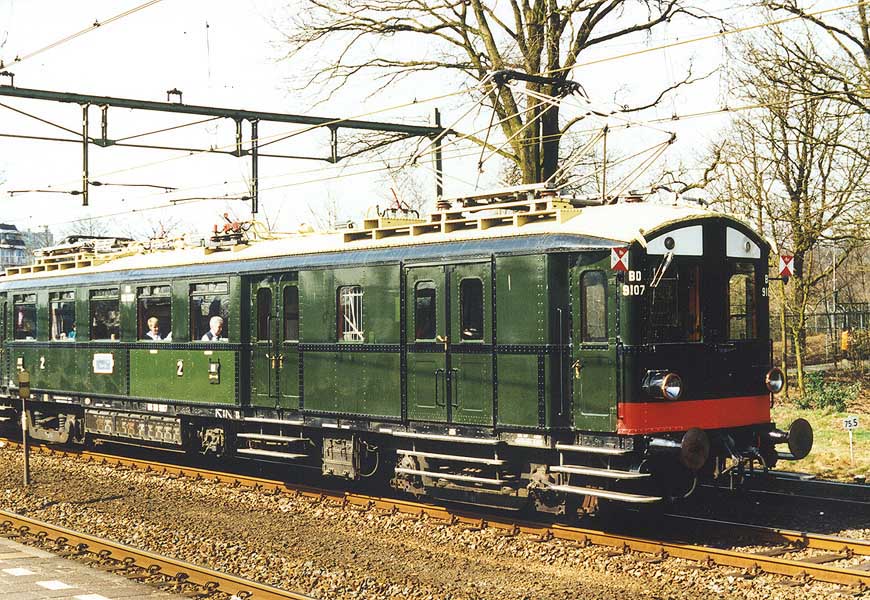

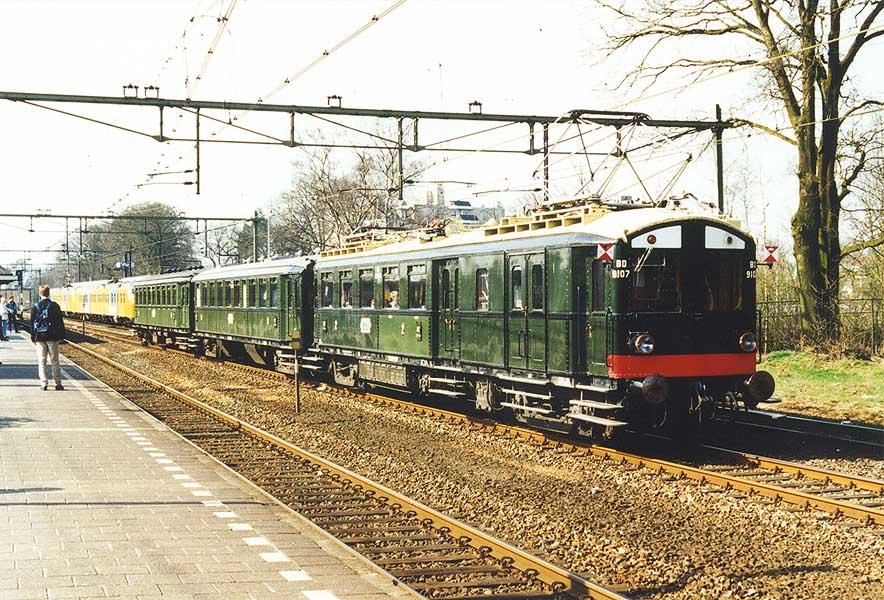

NSM Mat'24 Mat'24 at Ede-Wageningen on the 25th of March 1999.
Photo and scan by: Peter Schokkenbroek
|
|
NSM Mat'24 Mat'24 at Ede-Wageningen on the 25th of March 1999.
Photo and scan by: Peter Schokkenbroek
|
|
Dutch National Railway Museum Utrecht (Het Spoorwegmuseum)
Blokkendoos (Mat 24) EMU (1927)
August 2018
Photo by A. Rueda (ad.rueda@gmail.com) |
|

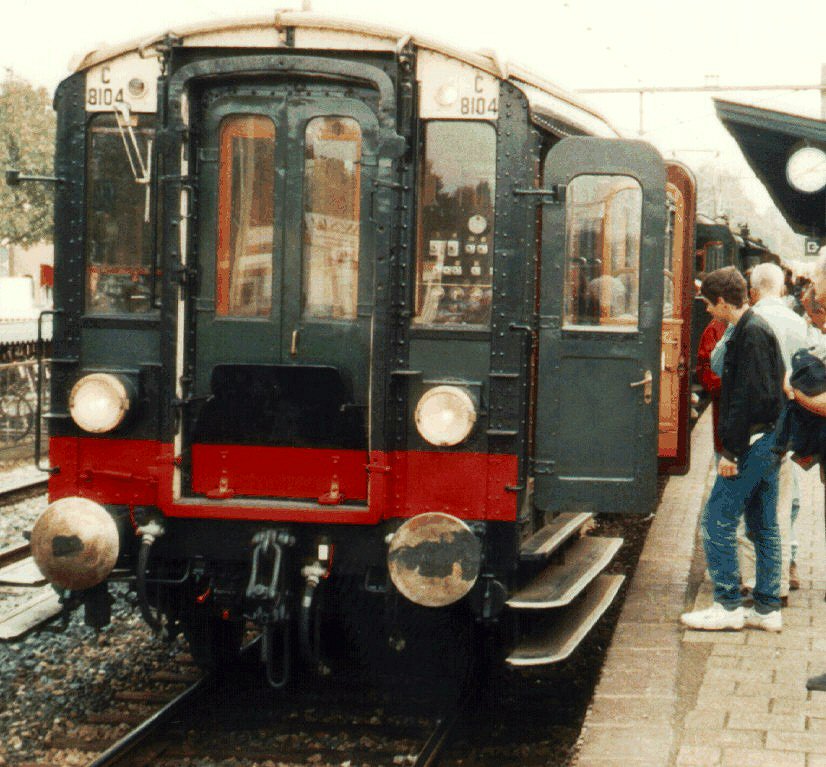

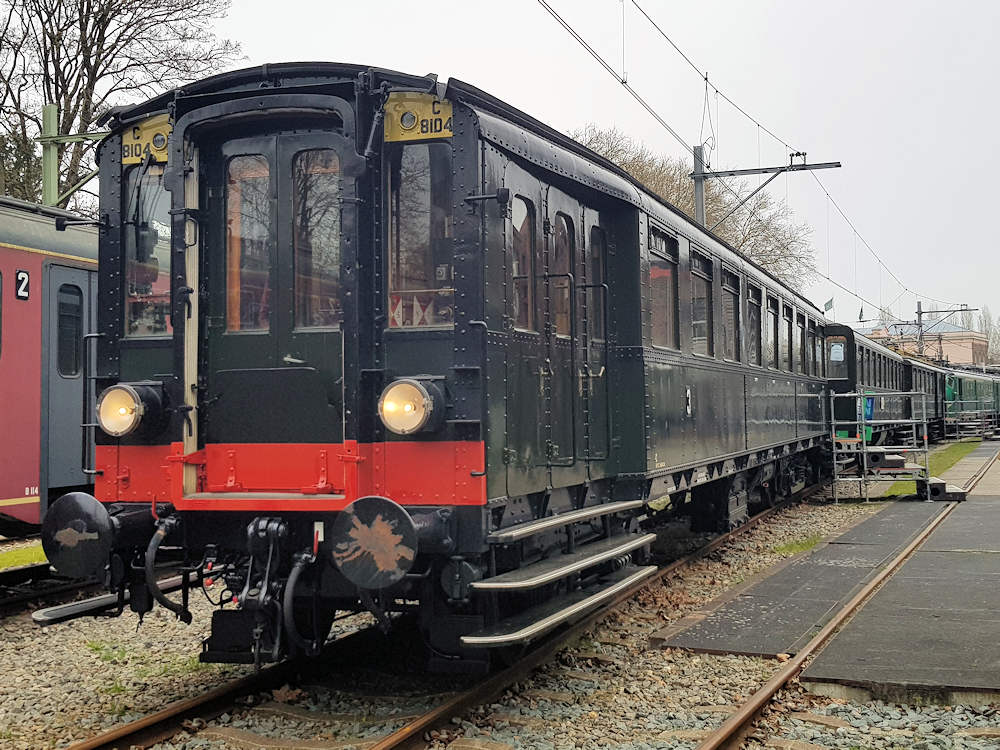

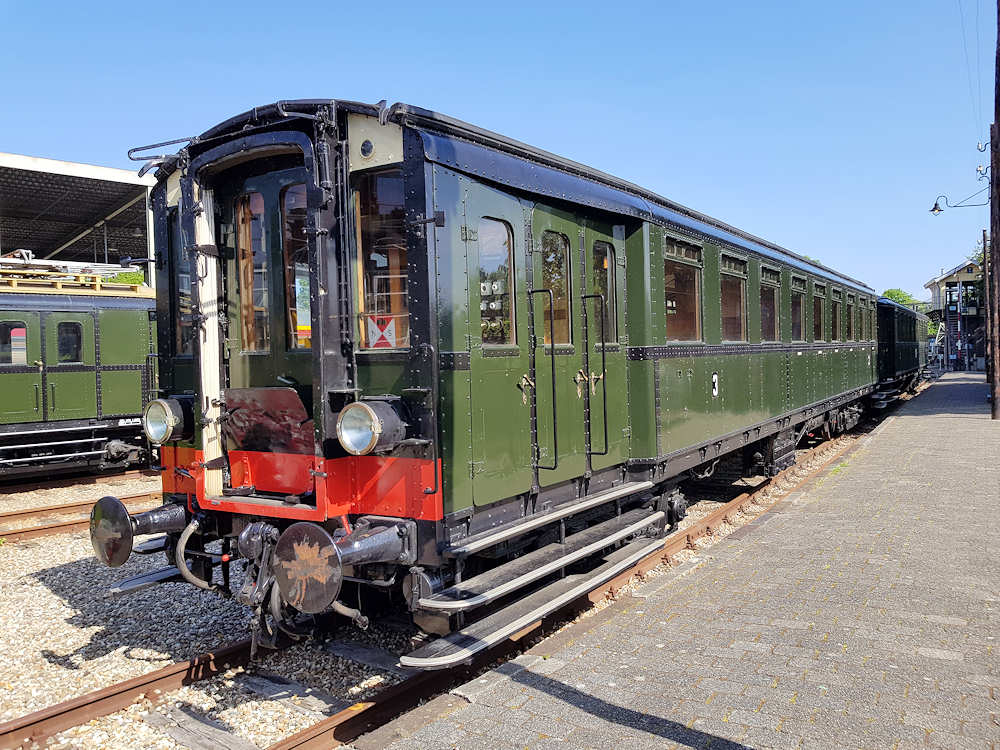

Driving trailer C 8104 of the museum electric trainset "Blokkendoos" of the
National Railway Museum. Photo taken in Boxtel, September 1994.
Photo by Marco van Uden (m.van.uden@worldonline.nl)
|
|
National Railway Museum - The Netherlands The historic "Blokkendoos" electric trainset with motor car BD 9107 leading. Utrecht, 16-08-2013 Digital photo by Marco van Uden |
| NS Blokkendoos 9107 at Utrecht Maliebaan on 13 September 2003 Scanned photo by Leon Schrijvers Leon2711schrijvers@yahoo.co.uk |
| NS 9107 on 28 december 2005 at Utrecht Maliebaan Scanned photo by Leon Schrijvers Leon2711schrijvers@yahoo.co.uk |

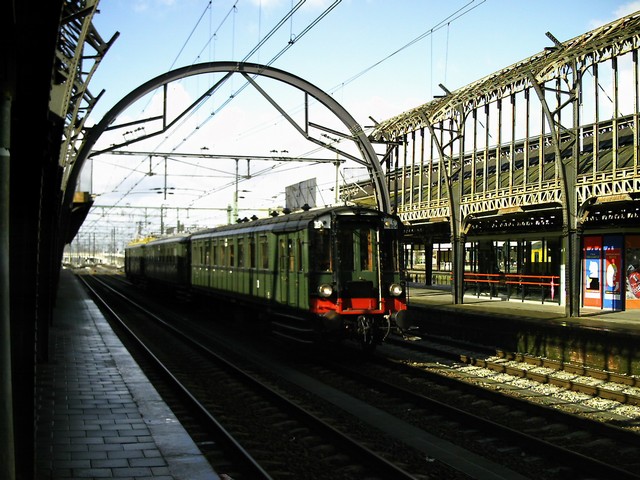

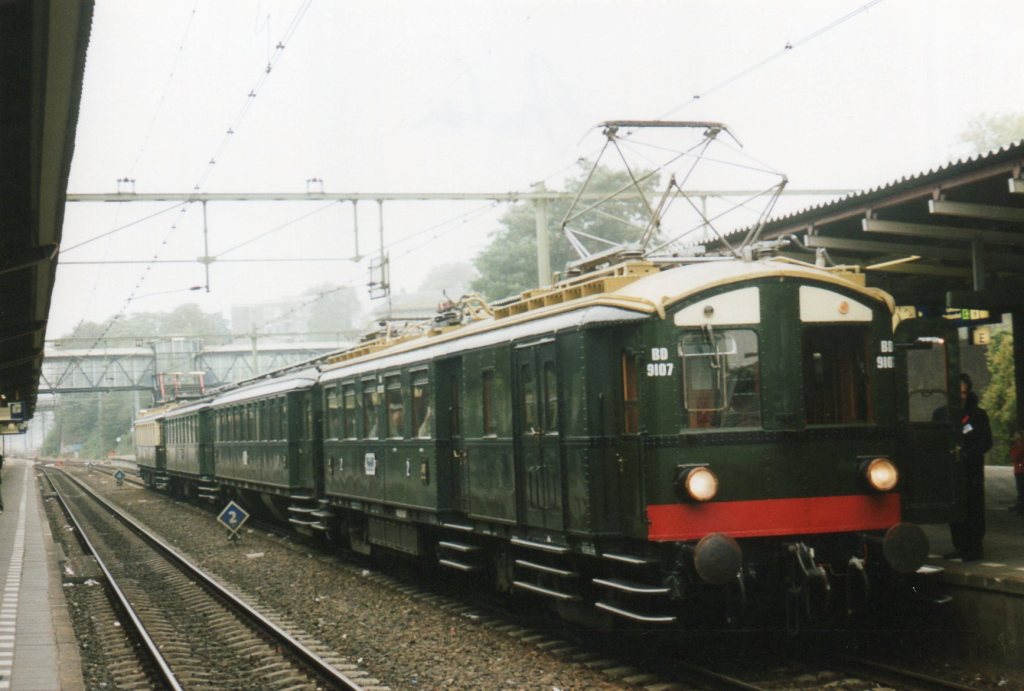

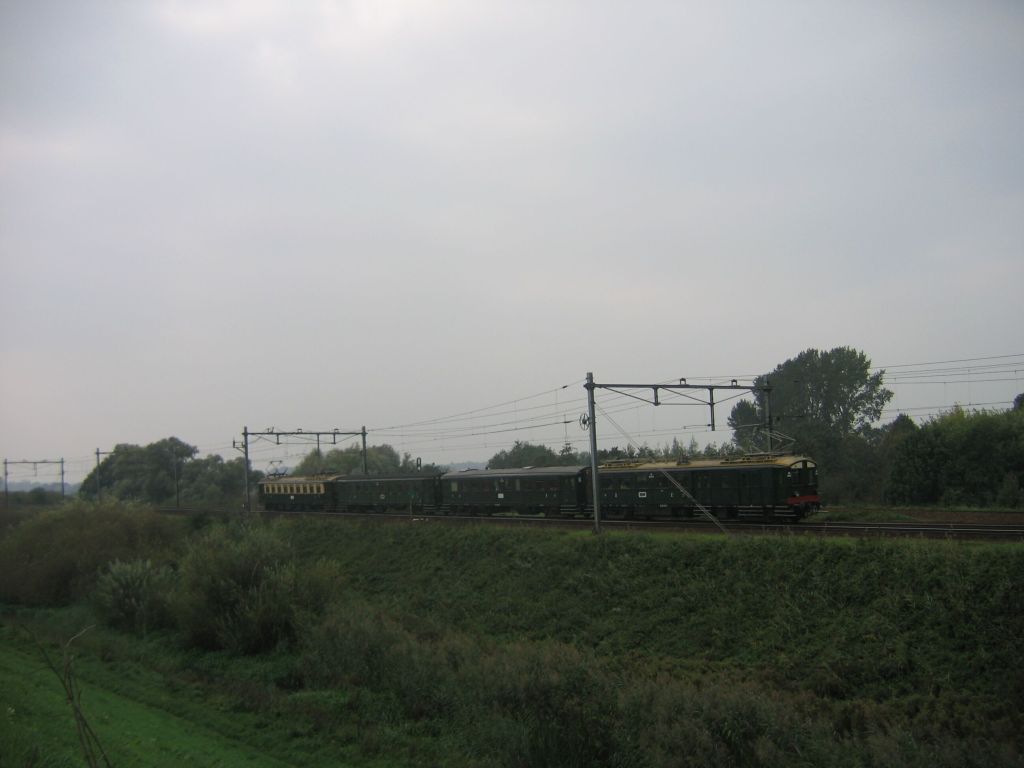

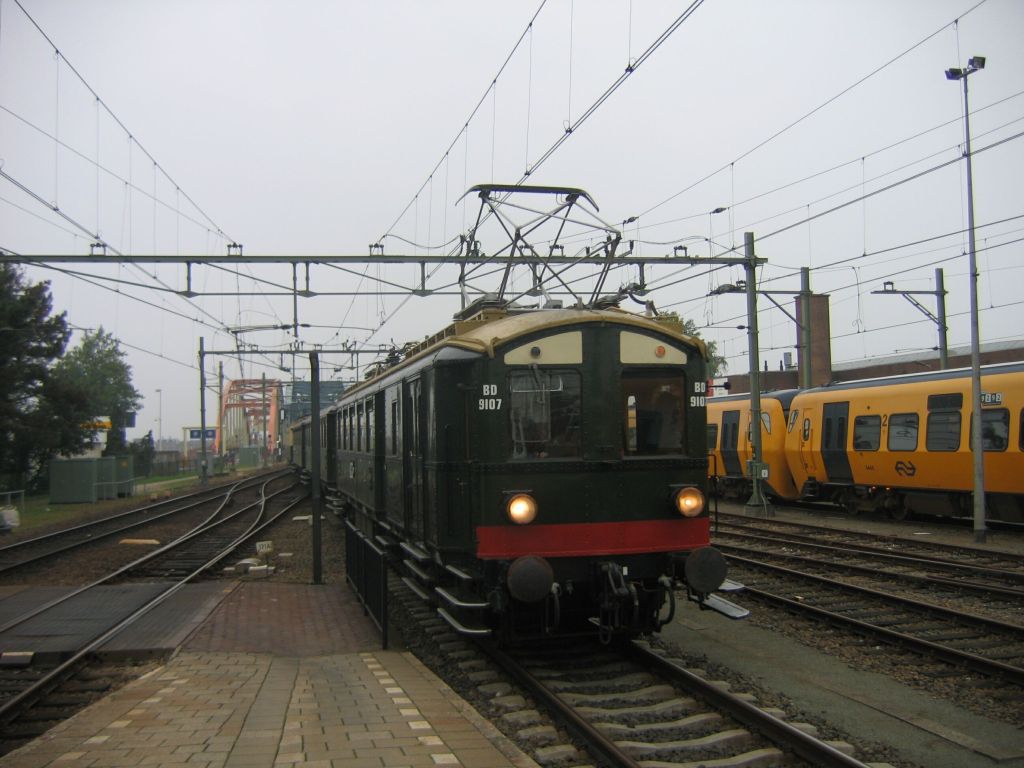

| NS 9107 BLOKKENDOOS in Arnhem on 14 Oktober 2006 Scan of a photo taken by Leon Schrijvers Leon2711schrijvers@yahoo.co.uk |
|

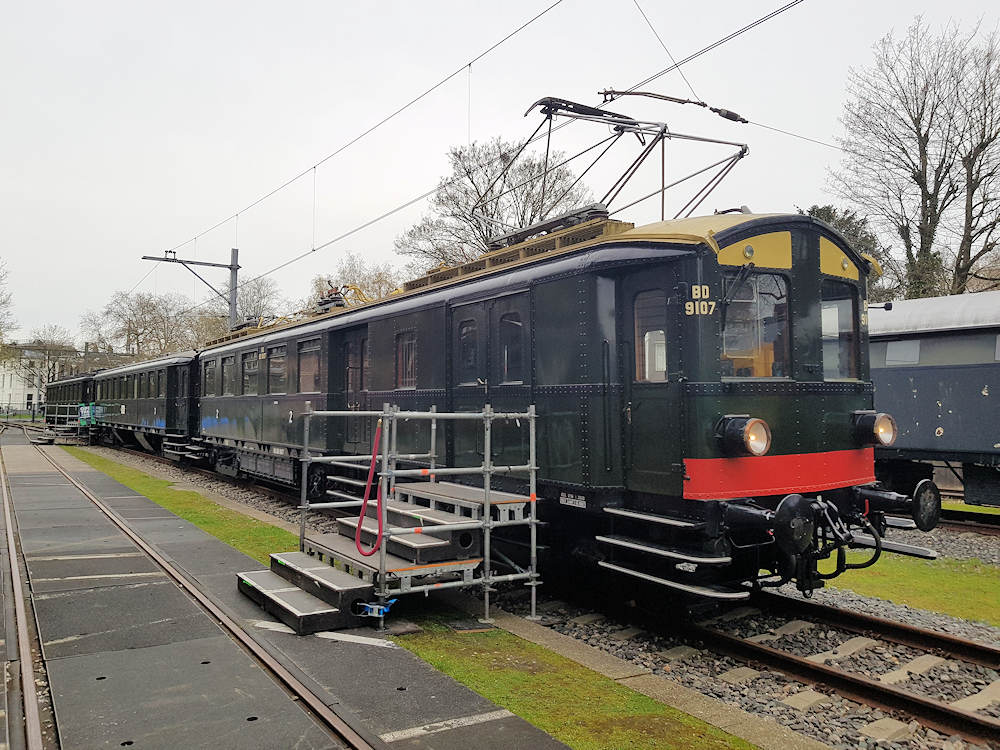

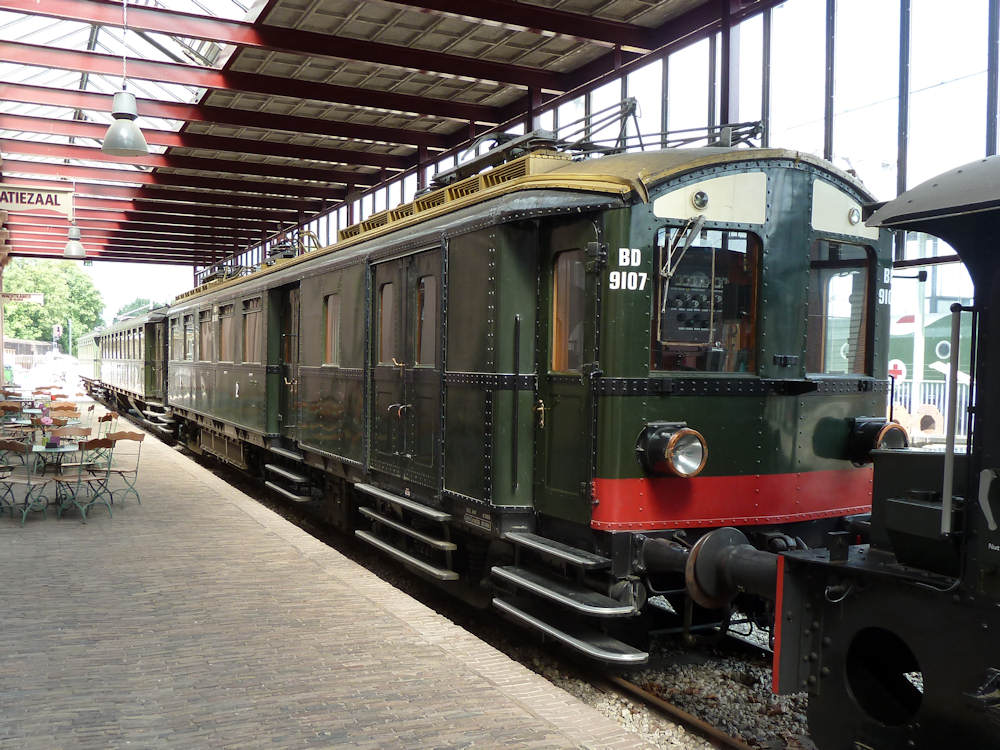

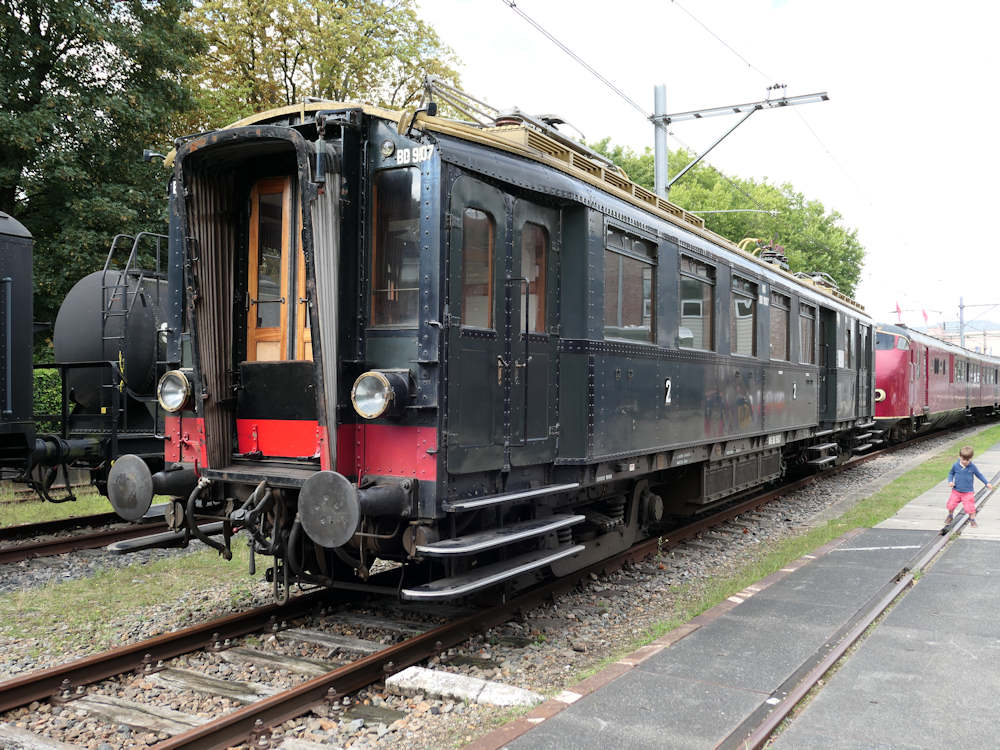

NSM - The Netherlands The Dutch National Railway Museum (Nederlands Spoorwegmuseum) is located in the former Maliebaan station at Utrecht and can be reached with an hourly train from Utrecht Centraal. A rare opportunity to see Blokkendoos/Mat'24 motor car BD9107 by itself, normally it is coupled to a trailer and driving trailer. Also the side with a passenger connection to the next car has a very small driving cab. Utrecht, 12-08-2017 Digital photo by Marco van Uden |
|
NSM - The Netherlands The Dutch National Railway Museum (Nederlands Spoorwegmuseum) is located in the former Maliebaan station at Utrecht and can be reached with an hourly train from Utrecht Centraal. A rare opportunity to see Blokkendoos/Mat'24 motor car BD9107 by itself, normally it is coupled to a trailer and driving trailer. Also the side with a passenger connection to the next car has a very small driving cab. Utrecht, 12-08-2017 Digital photo by Marco van Uden |
|

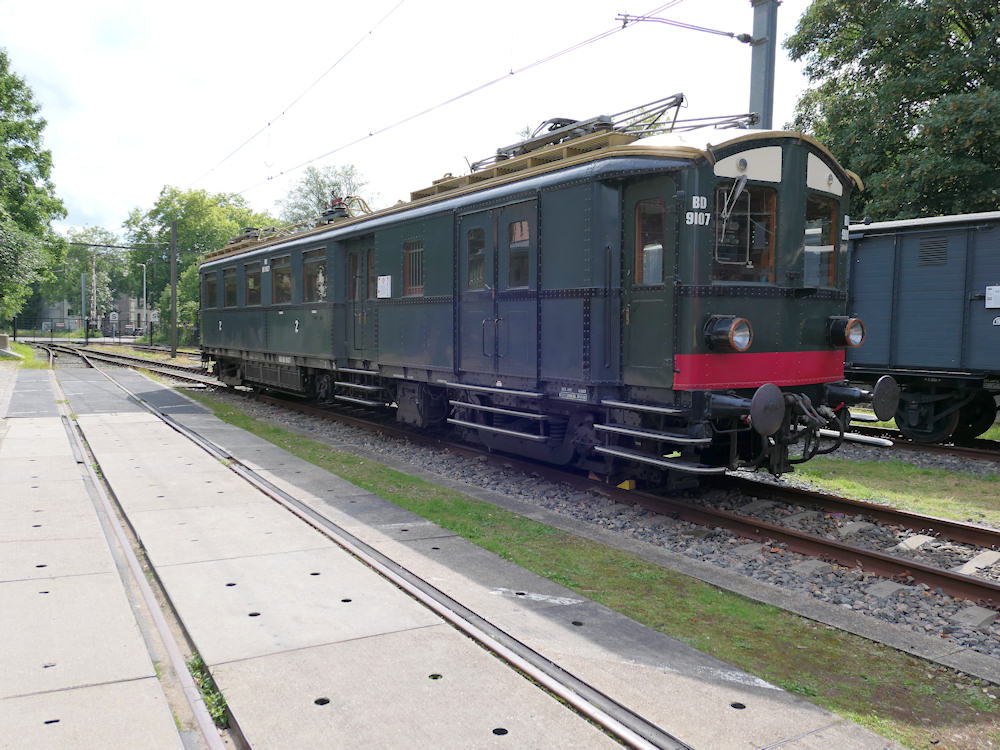

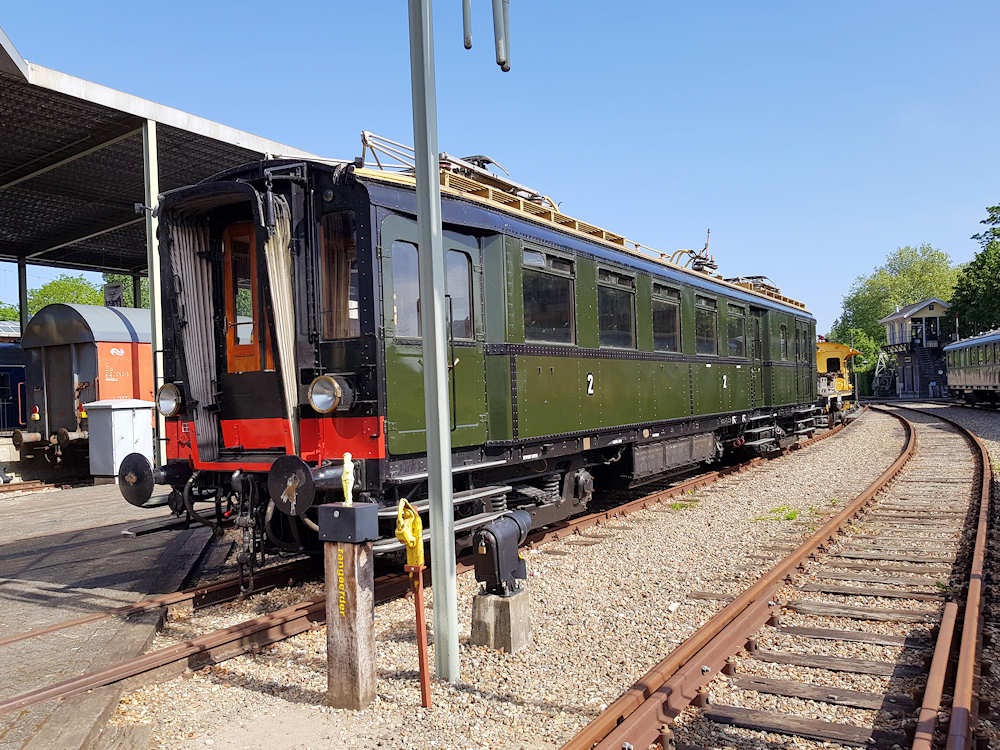

NS/National Railway Museum - The Netherlands The historic "Blokkendoos" electric trainset Mat'24 is still being restored to working order. In the picture is motor car BD9107 with the end to the camera that is normally coupled to the other coaches. Utrecht Maliebaan - 14-05-2022 Photo by Marco van Uden |
|
NS/National Railway Museum - The Netherlands Open Train Festival at the National Railway Museum in Utrecht. It is good to see the Mat'24 "Blokkendoos" trainset of the NSM complete again, although it has not yet operated on the NS network again. Motor car BD9107 with trailer Cecr8553 and driving trailer Ces8104. Utrecht Maliebaan - 10-04-2023 Photo by Marco van Uden |
|

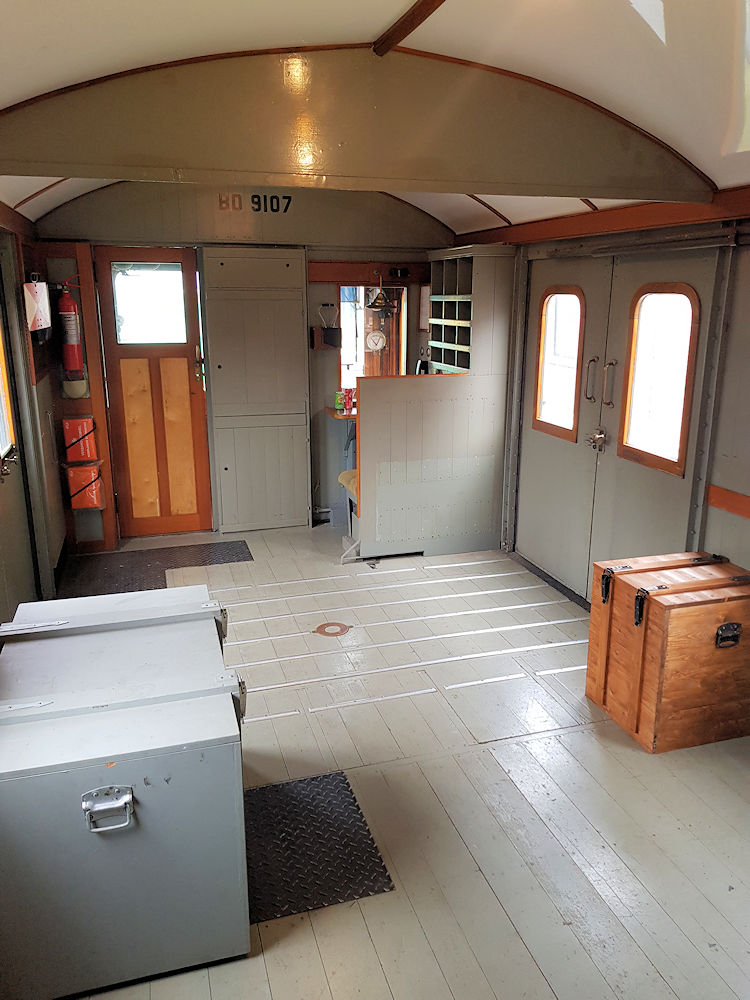

NS/National Railway Museum - The Netherlands Open Train Festival at the National Railway Museum in Utrecht. Luggage compartment and cab of motor car BD9107 of the Mat'24 "Blokkendoos" trainset. Utrecht Maliebaan - 10-04-2023 Photo by Marco van Uden |
|

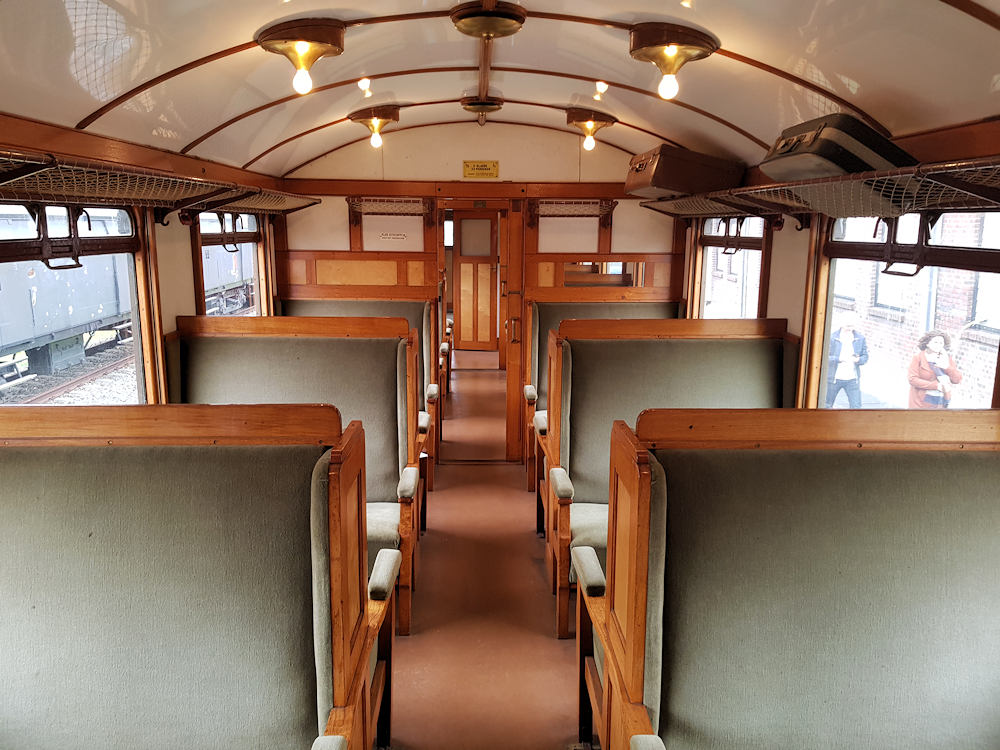

NS/National Railway Museum - The Netherlands Open Train Festival at the National Railway Museum in Utrecht. Second class interior of motor car BD9107 of the Mat'24 "Blokkendoos" trainset. Utrecht Maliebaan - 10-04-2023 Photo by Marco van Uden |
|

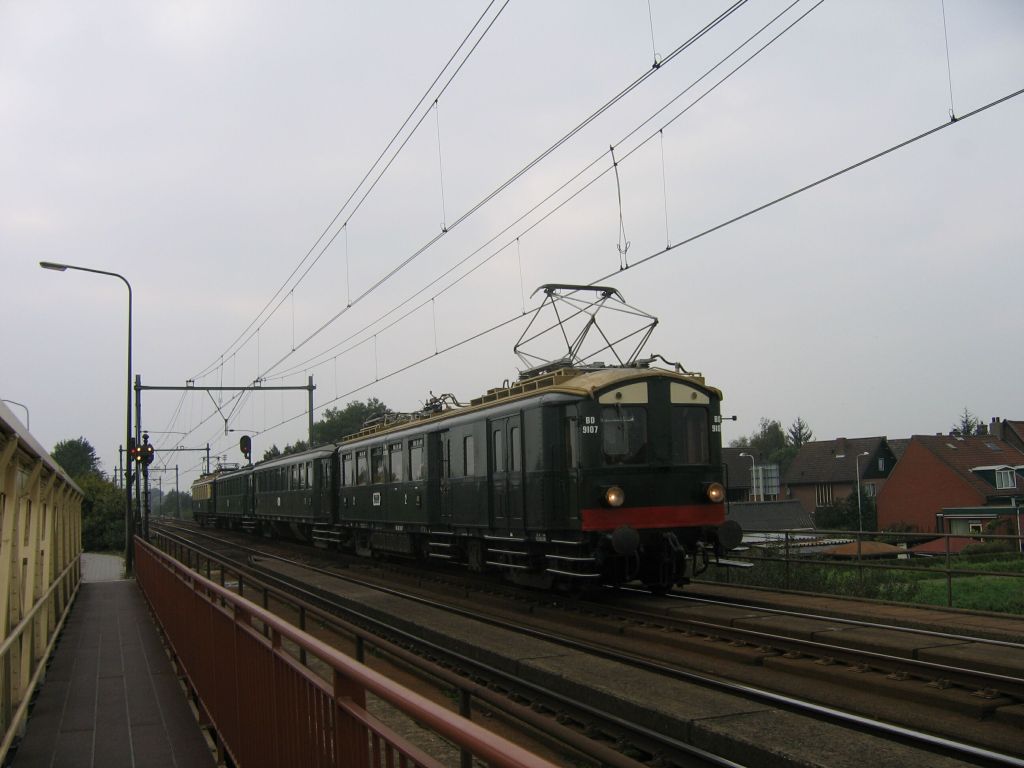

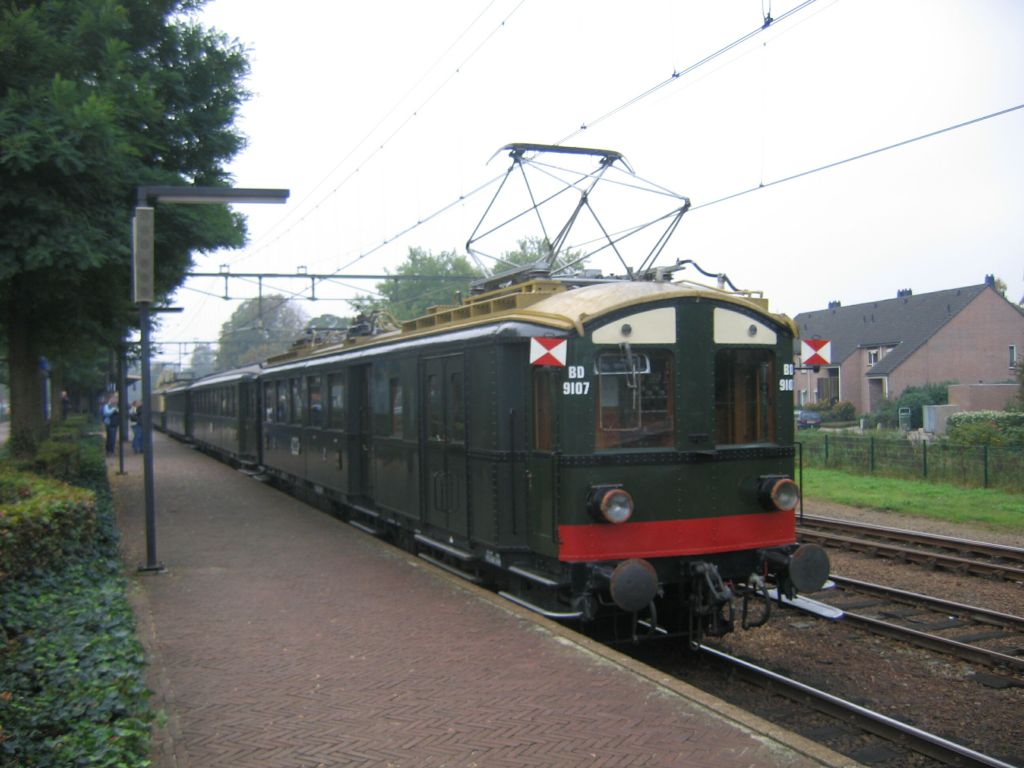

NS BD 9107 Zutphen Ijsselbrug 14.10.2006 Photo: Jos Straathof |
|
NS BD 9107 Zutphen de Hoven 14.10.2006 Photo: Jos Straathof |
|
NS BD 9107 Zutphen 15.10.2006 Photo: Jos Straathof |
|
NS BD 9107 Dieren 15.10.2006 Photo: Jos Straathof |
| EMU "Blokkendoos" with 2 coaches passes Utrecht Centraal on Monday 6 March 2006. (by Walter M. Brands, http://brands.host.sk) |
|
NS/National Railway Museum - The Netherlands The historic "Blokkendoos" electric trainset Mat'24 is still being restored to working order. In the picture is driving trailer C8104 with the intermediate coach (C8553) at the back. Utrecht Maliebaan - 14-05-2022 Photo by Marco van Uden |
|

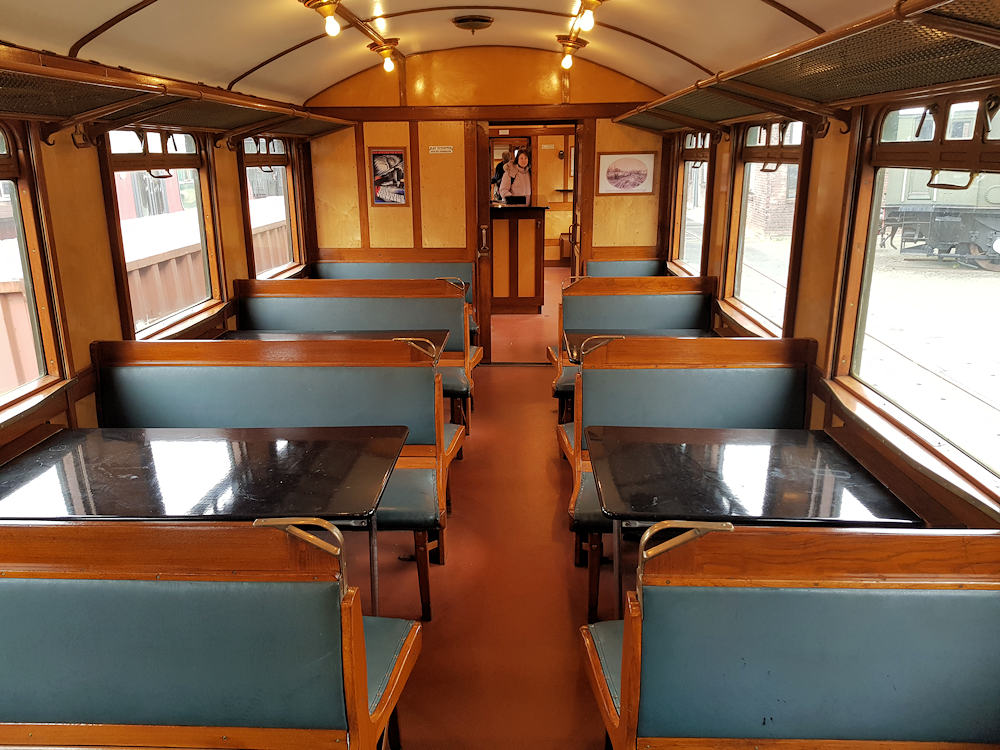

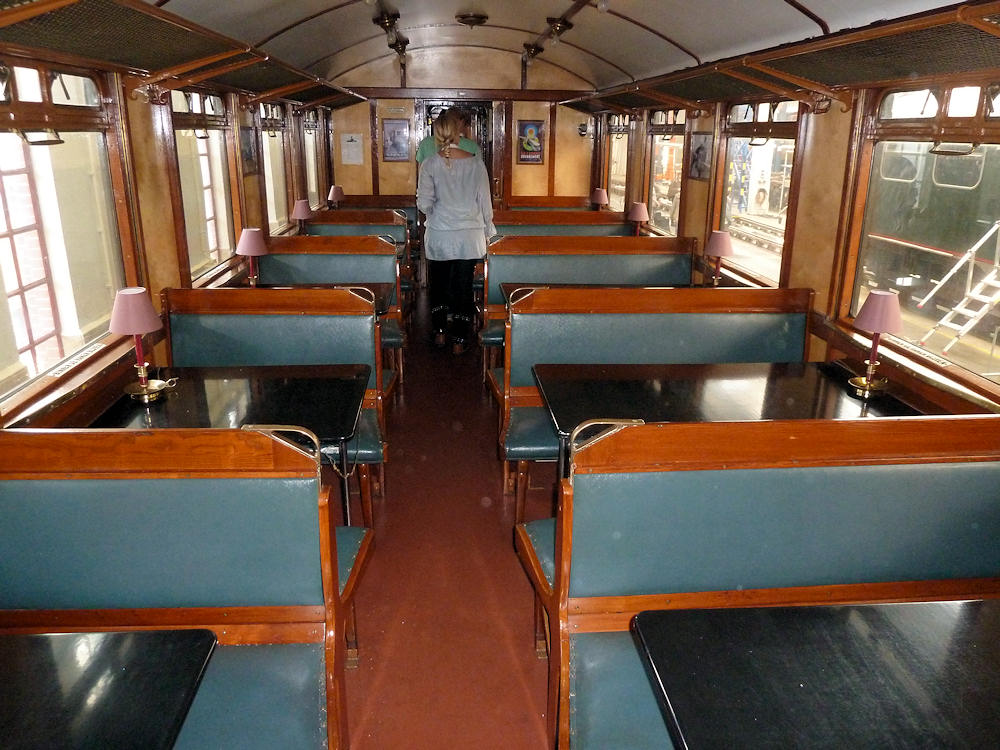

NS/National Railway Museum - The Netherlands Open Train Festival at the National Railway Museum in Utrecht. Restaurant area (not original) in coach Cecr8553 of the Mat'24 "Blokkendoos" trainset. Utrecht Maliebaan - 10-04-2023 Photo by Marco van Uden |
|
NS - The Netherlands Interior of the center coach of the Mat'24 historic trainset "Blokkendoos" of the Dutch National Railway Museum. It is rebuilt into a restaurant area in a historic but not original way. Nedtrain Leidschendam, 04-10-2014 Digital photo by Marco van Uden |
|
NS/National Railway Museum - The Netherlands Open Train Festival at the National Railway Museum in Utrecht. It is good to see the Mat'24 "Blokkendoos" trainset of the NSM complete again, although it has not yet operated on the NS network again. Driving trailer Ces8104 with trailer Cecr8553 and motor car BD9107. Utrecht Maliebaan - 10-04-2023 Photo by Marco van Uden |
|

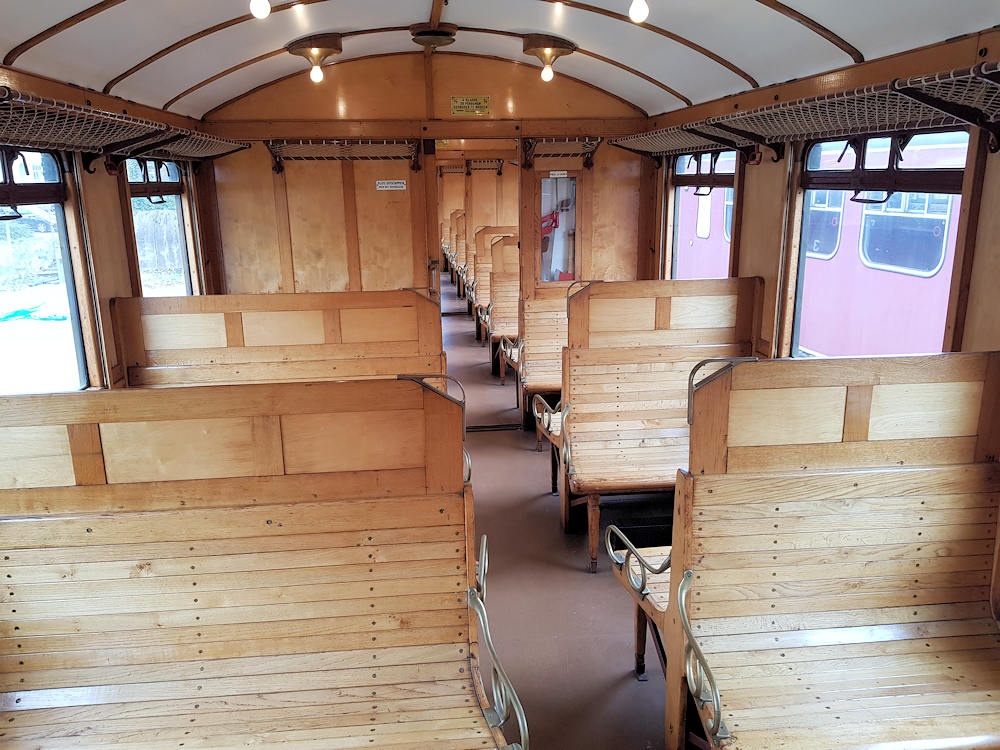

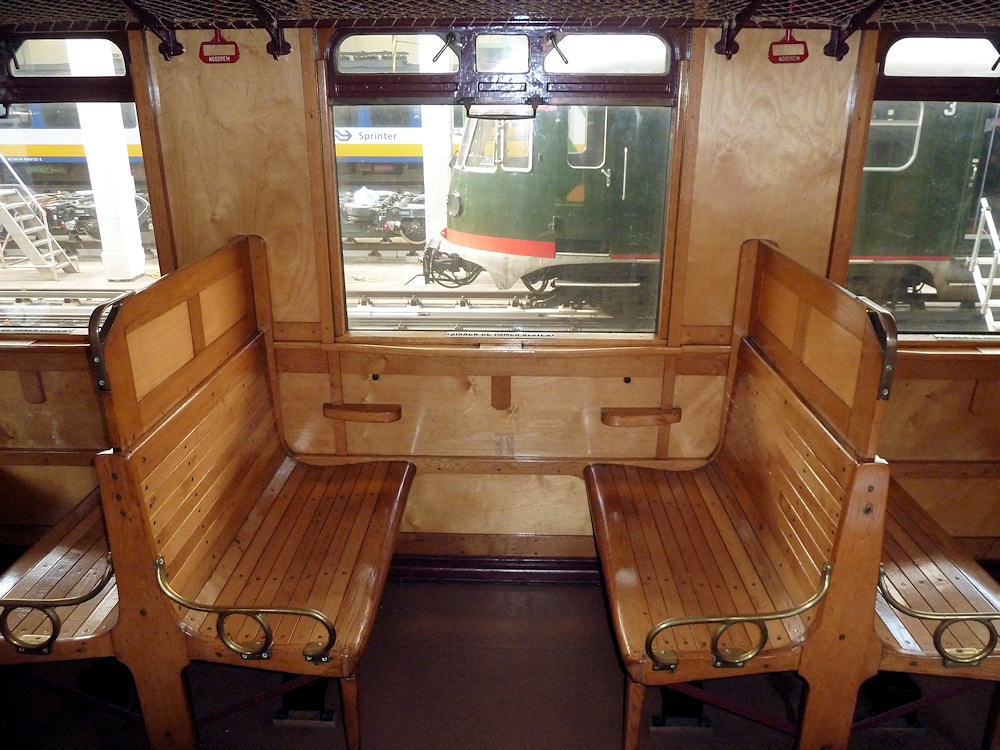

NS/National Railway Museum - The Netherlands Open Train Festival at the National Railway Museum in Utrecht. Third class interior of driving trailer Ces8104 of the Mat'24 "Blokkendoos" trainset. Utrecht Maliebaan - 10-04-2023 Photo by Marco van Uden |
|
NS - The Netherlands Interior of the driving trailer of the Mat'24 historic trainset "Blokkendoos" of the Dutch National Railway Museum. With 3rd class wooden benches. Nedtrain Leidschendam, 04-10-2014 Digital photo by Marco van Uden |
|

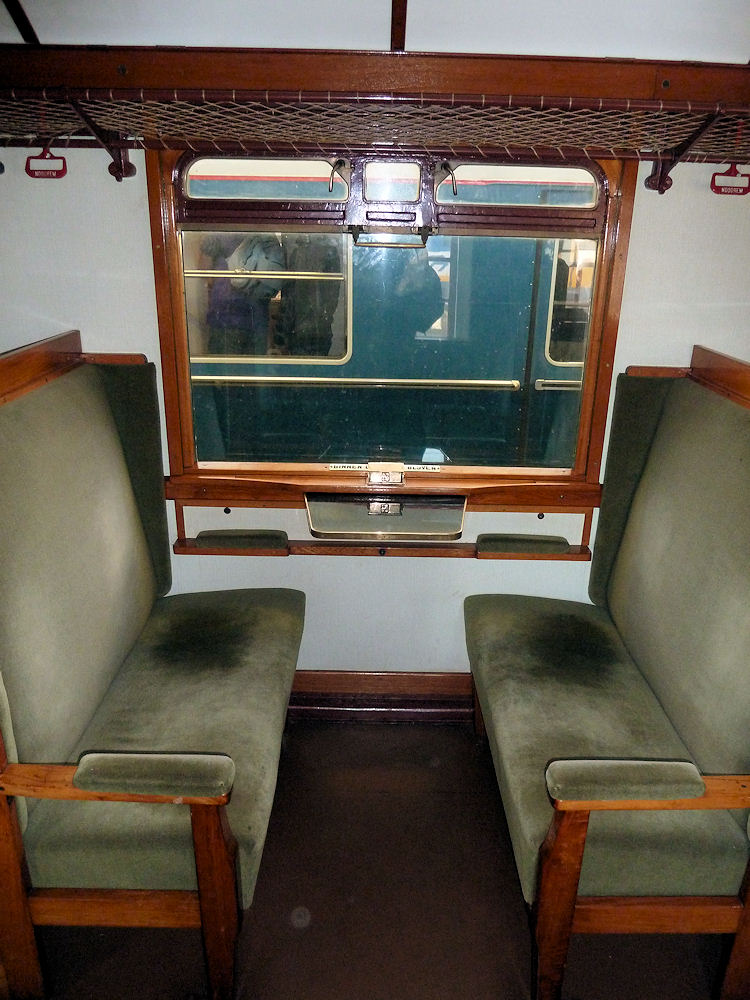

NS - The Netherlands Interior of the motor car of the Mat'24 historic trainset "Blokkendoos" of the Dutch National Railway Museum. 2nd class. Nedtrain Leidschendam, 04-10-2014 Digital photo by Marco van Uden |
|

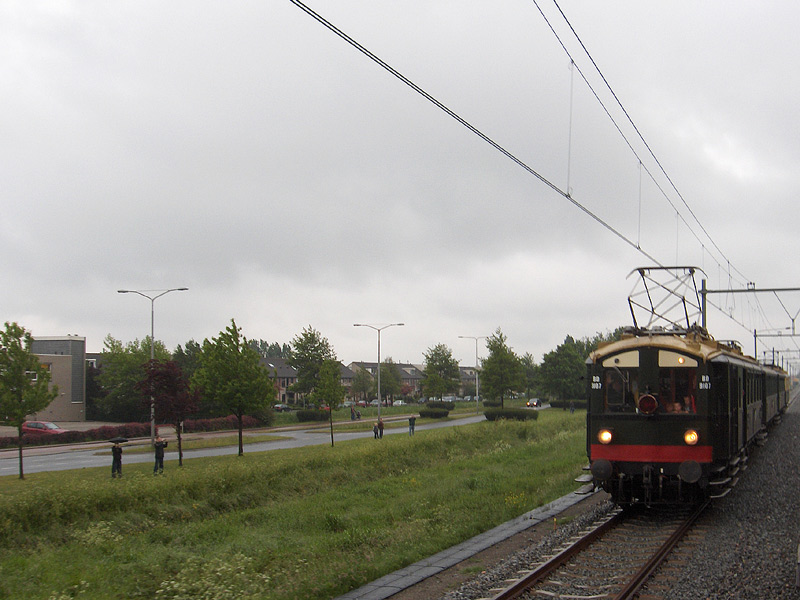

BD 9107 at Pijnacker. 25.05.2006 Photo by Thomas van Berkel |
|

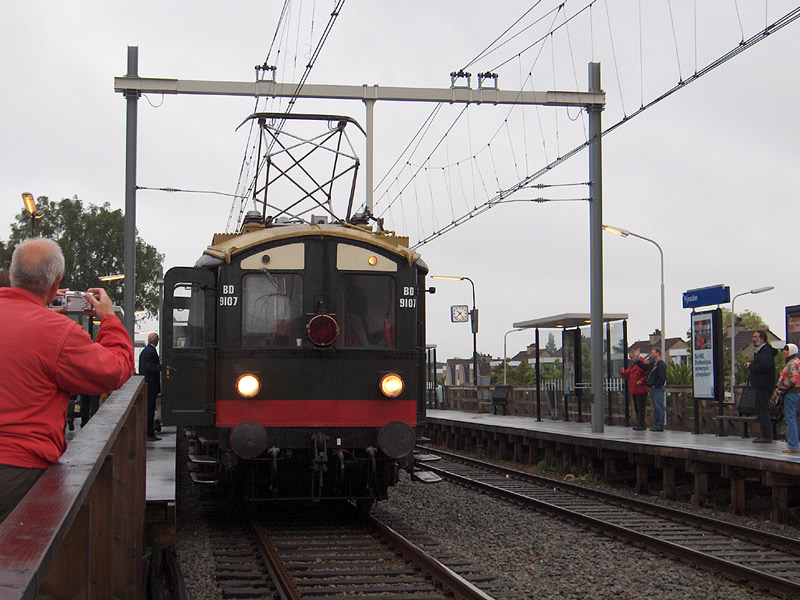

BD 9107 near Pijnacker. 25.05.2006 Photo by Thomas van Berkel |
|
NVBS 75 festivities - The Netherlands On 14 and 15 October 2006 the Dutch railfan society NVBS celebrated its 75th birthday by running (mostly) stock from the 1930s and modern times between Arnhem, Dieren, Zutphen and Apeldoorn.

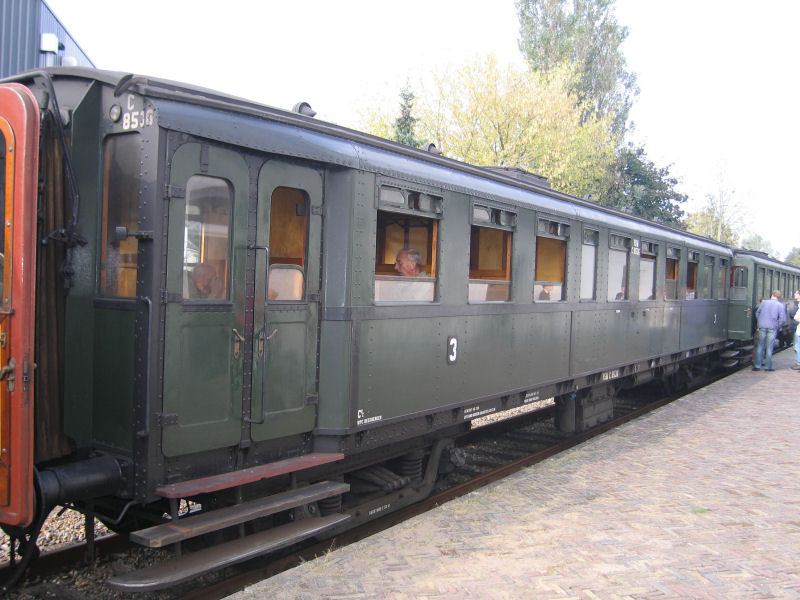

Many cars from the Mat'24 "Blokkendoos" electric trainsets were later rebuilt
into hauled coaches. Museum railway VSM ownes quite a few of them. This is one
of these coaches (C 8536 - 3rd class) during a short stop in Eerbeek.
Digital photo by Marco van Uden |
|

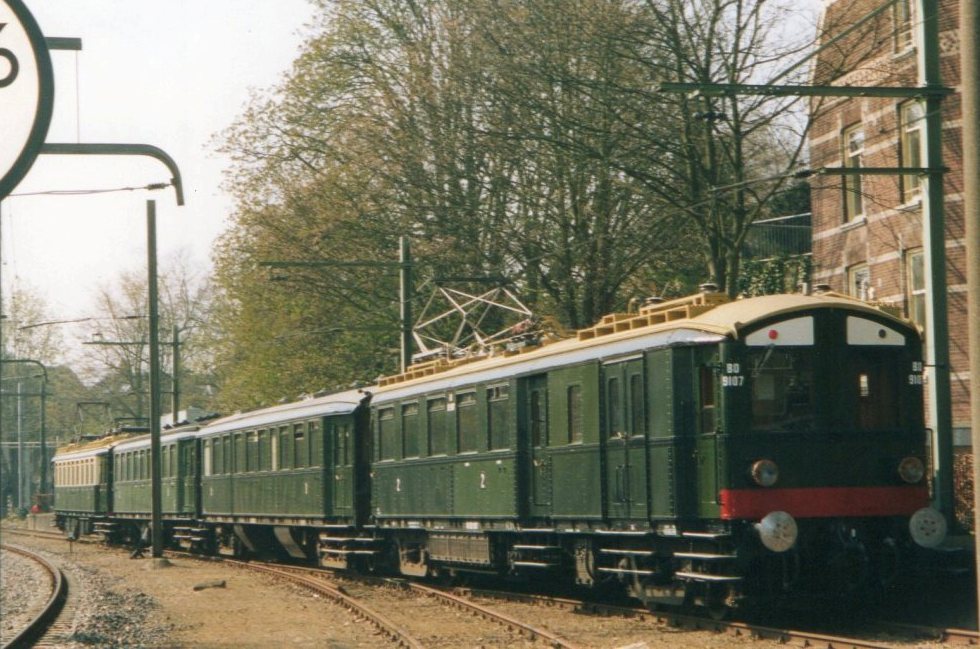

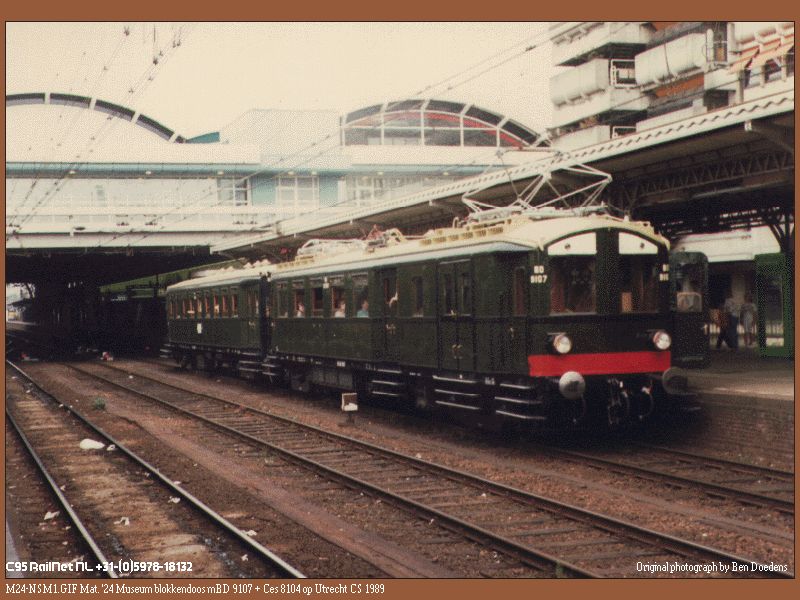

Museum trainset Mat'24 "Blokkendoos" mBD 9107 + Ces 8104 at Utrecht
central station in 1989.
Photo and scan by Ben Doedens <b.doedens@dosgg.nl> |
|

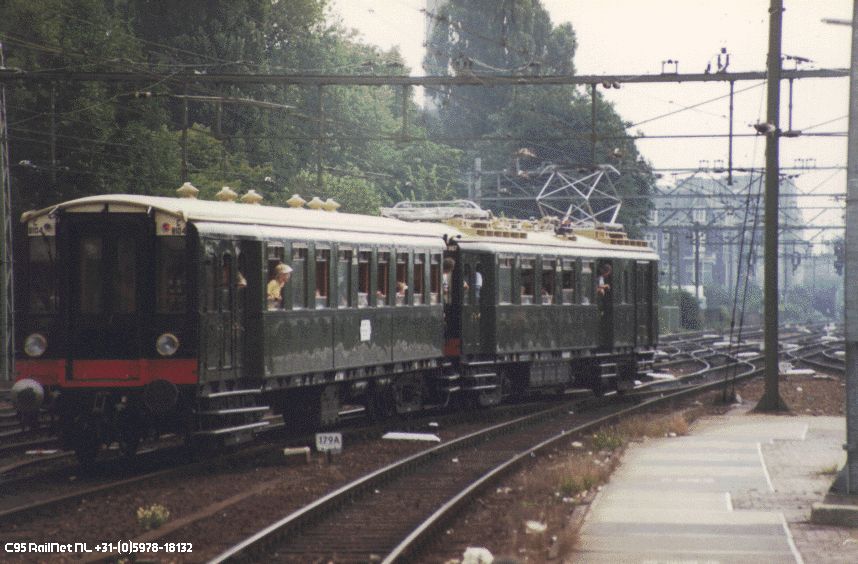

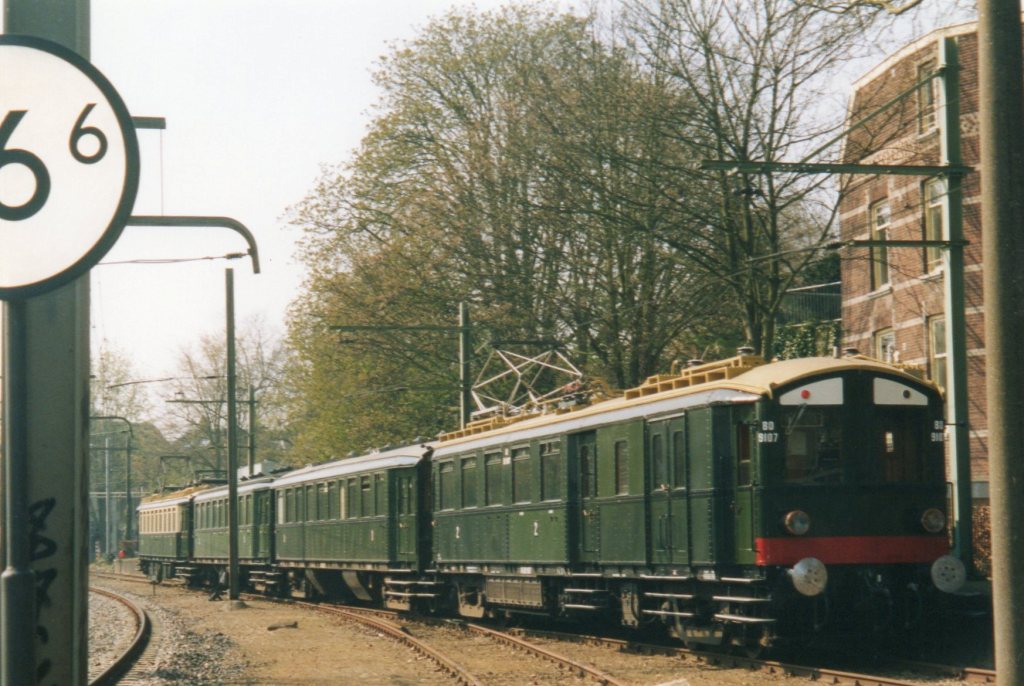

Museum trainset Mat'24 leaving Utrecht CS to the Maliebaan station
(National Railway Museum) during the NS150 celebrations.
Photo and scan by Ben Doedens <b.doedens@dosgg.nl> |
|

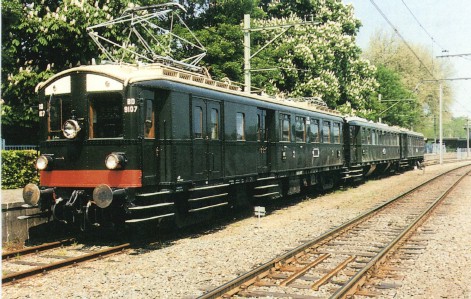

Museum train consisting of Electric Stock 1924. Between 1923 and 1932 in total 261 coaches of 14 different types were built, of which 3 ended up in the National Railway Museum of The Netherlands: BD 9107, C 8553 and C 8104. Utrecht Maliebaan, 6 may 1995.
Photo by B. Schooneveld (used with permission)
|
|
Electric Stock 1924, interior second class. Utrecht Maliebaan, 7 May 1994.
Photo by B. Schooneveld (used with permission)
|
|

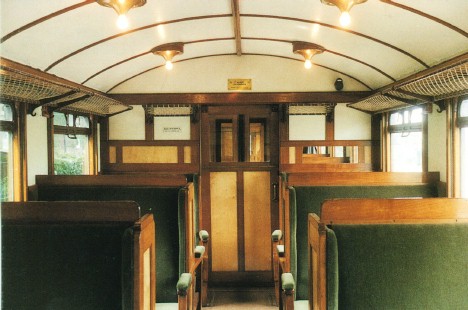

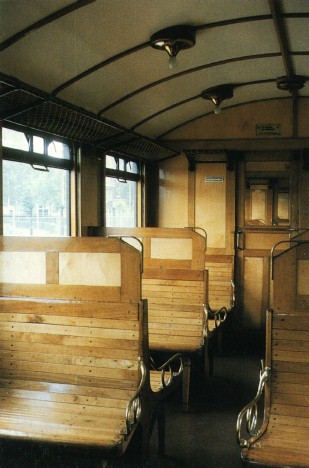

Electric Stock 1924, interior third class. Utrecht Maliebaan, 7 May 1994.
Photo by B. Schooneveld (used with permission)
|
